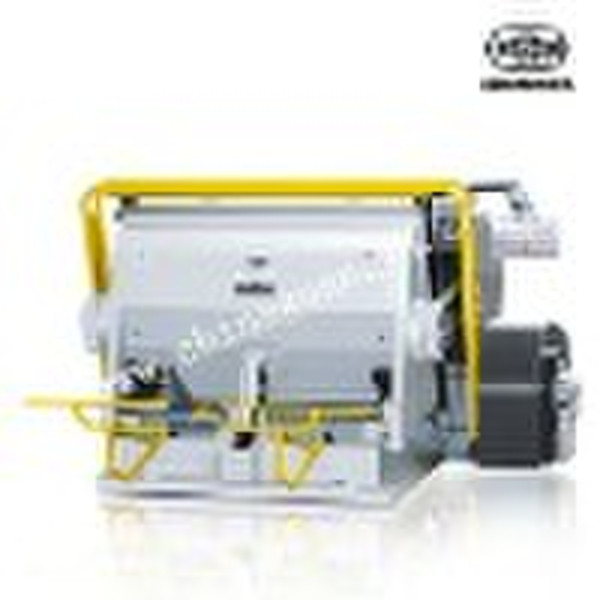

Platen Die Cutting Machine

Creasing and Die Cutting Machine is a special equipment for creasing and die cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation. 1) High strength due to whole body casting with high quality material. 2) Smooth running, high pressure and low noise with 4-step helical gear mechanism. 3) Single plate electromagnetic clutch is sensitive and reliable. 4) Operational altitude is reasonably arranged, moving-bed opens to its maximum. 5) Electrical system is designed in conformity with IEC standard. 6) Single, continuous operation and opening delay are available, delay range adjustable. 7) Reliable safety system. 8) Adjustable chases. Specifications: Model ML-2000 ML-1800 ML-1600 Inside chase (mm) 2000×1400 1800×1300 1600×1250 Max. die cutting size (mm) 2000×1400 1800×1300 1600×1250 Speed (cuts/min) 16±2 16±2 16±2 Max. rule length (m) ≤58 ≤50 ≤43 Power main motor (kw) 15kw 11kw 11kw Gross weight (kg) 16500 14200 12000 Dimensions (L×W×H)(mm) 3500×2200×2180 2900×2300×2180 2700×2300×2180
