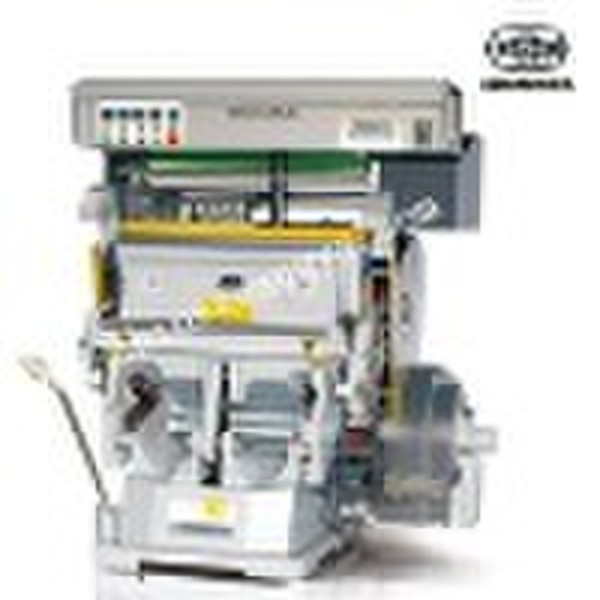

Hot Foil Stamping Press

Hot Foil Stamping Press is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc. It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and die cutting machine for mould cutting and creasing cardboard cases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products. The machine is controlled by a chip microprocessor. With the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum. The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained easily and simply. Specifications: Model TYMC-203Max. inside chase size (mm)930×660Max. stamping size (mm)930×660Speed (sheets/min)25±2Groups of feeding foil3Max. foil advance (mm)660Leapfrog frequency0-99Adjustable temperature ()10-300Zones individually heated5Heating capacity (kw)12.5Total power (kw)16.5Motor power4kw 4 electrodesGross weight (kg)4500Dimensions (L×W×H) (mm)1960×1760×2060
